Light source:Cross LED 3W/pcs, 9pcs LED
Outerring LED 2W/pcs, S: 12 pcs LED,M: 24 pcs LED,L: 24 pcs LED
Led power: S: 65W, M: 95W, L: 95W
Operating Voltage:10-30V DC
Remote control distance: 8M

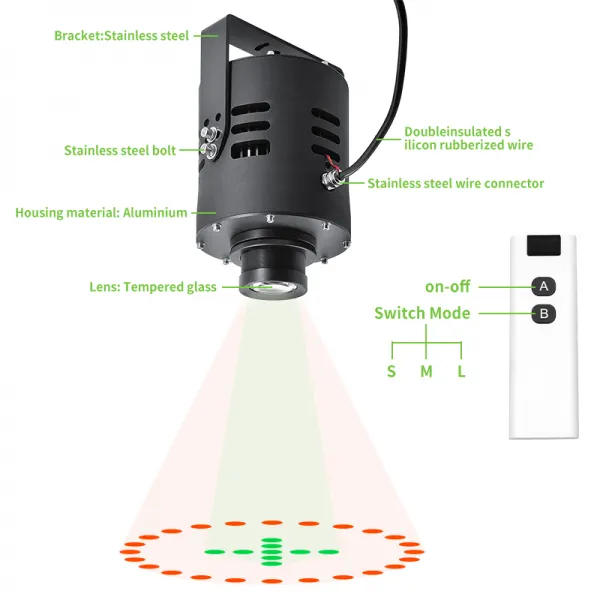

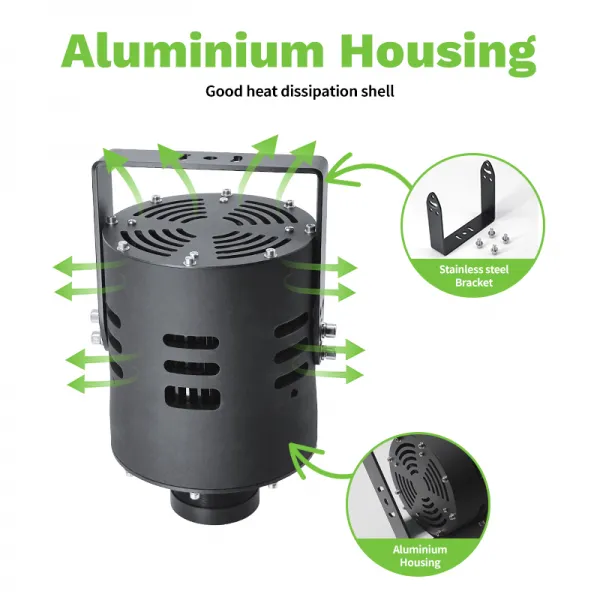

Housing material: Aluminium

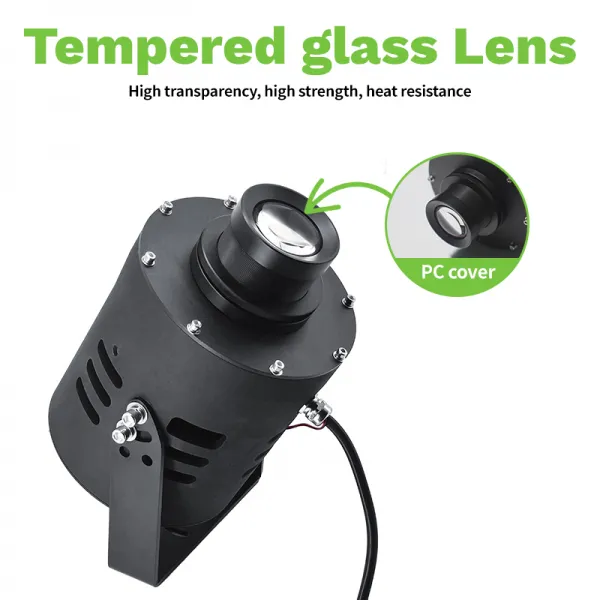

Lens: Tempered glass
Bracket: Stainless steel
Working temperature: 60°C
Light beam :Circle beam
N.W. per unit: 5kg
Ip65 waterproof

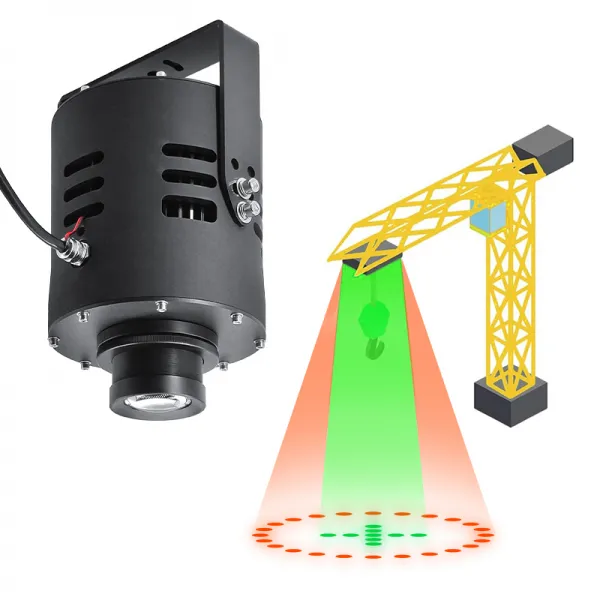

Overhead Crane LED Pedestrian Warning Light
Products offers the highest quality LED safety and crane lights for hazardous work areas, construction sites and other safety applications.

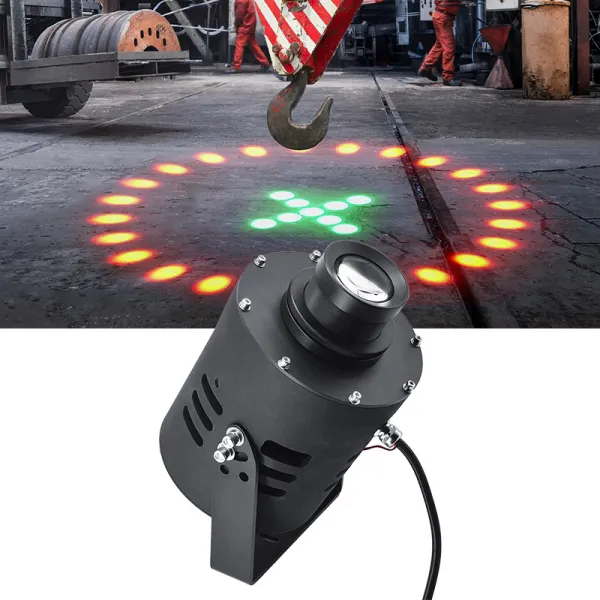

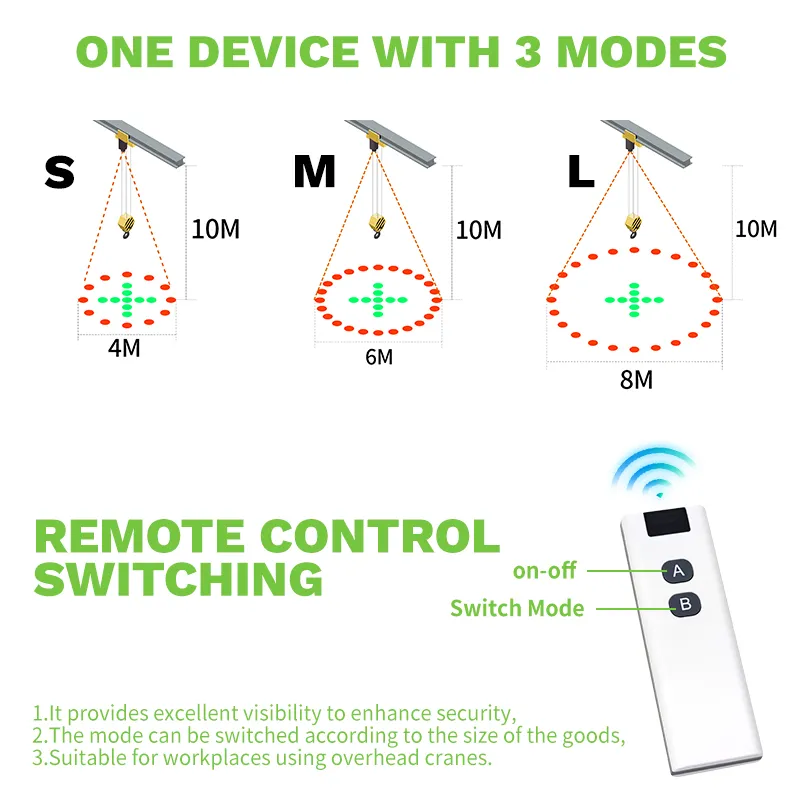

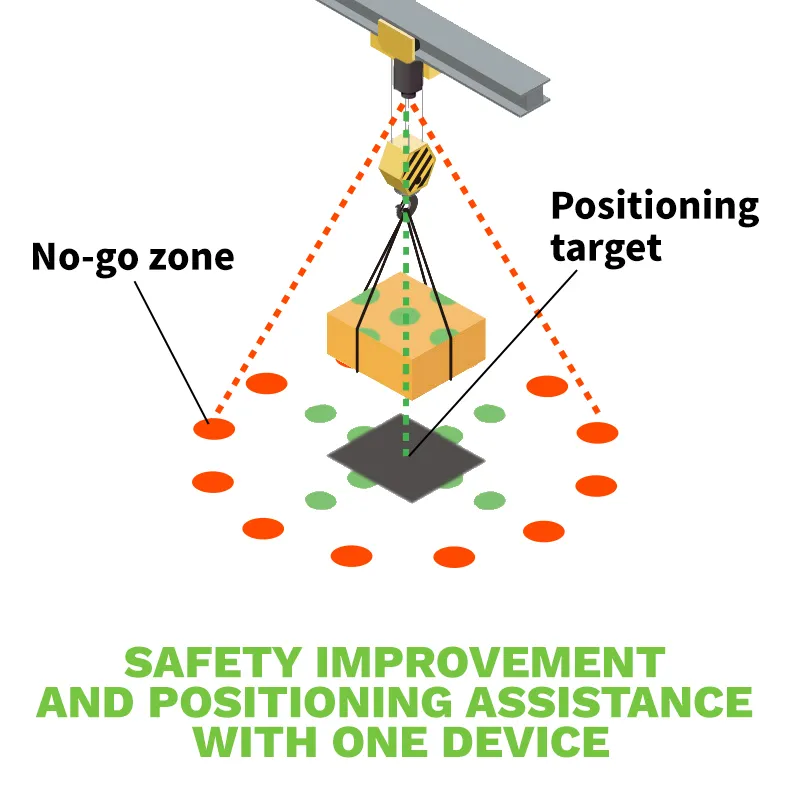

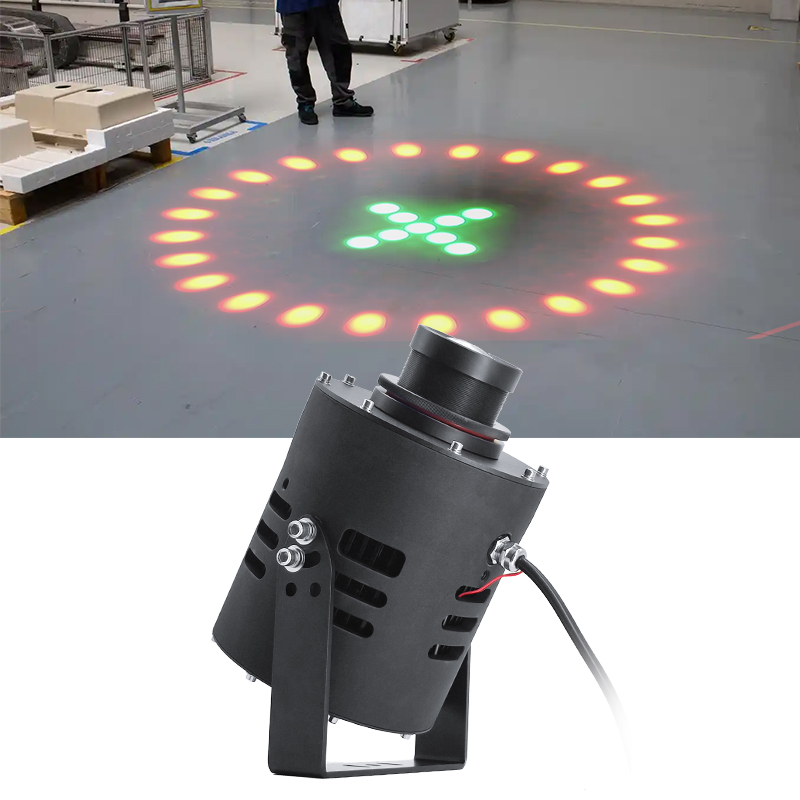

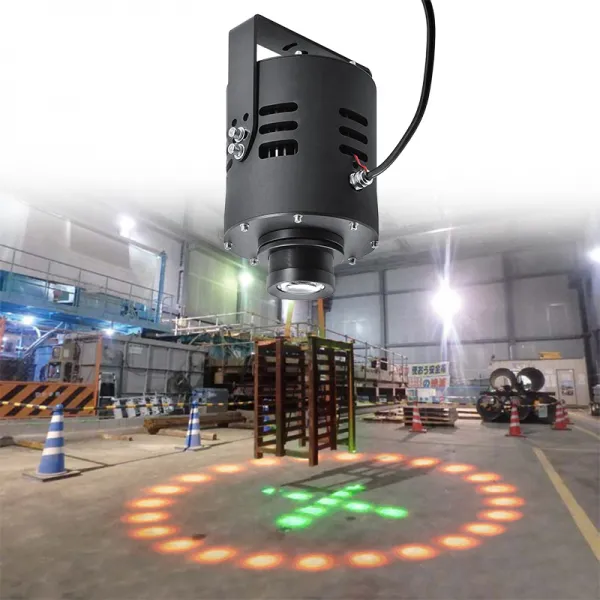

The XRL1335i provides different operating modes to create a visible circular warning zone around an overhead crane load. The required projection area should be selected according to the load size, mounting height and pedestrian clearance required around the working zone.
Smaller loads or compact working areas: Use a smaller projected circle to define the immediate lifting zone.
General warehouse lifting: A medium warning zone provides additional visual clearance around suspended loads.
Large loads or wider crane operating areas: Use the larger projection mode to create a broader pedestrian warning boundary.
The remote-control function allows operators to switch the warning mode without accessing the light directly.
This circular crane warning light can be used in:
Overhead crane operating areas
Steel and metal processing plants
Warehouses with pedestrian traffic
Manufacturing workshops
Loading and unloading areas
Heavy equipment assembly lines
Crane maintenance areas
| Warning Method | Main Function | Better For |
|---|---|---|
| Circular Crane Warning Light | Defines a complete safety area around the load | Suspended-load pedestrian exclusion zones |
| Crane Spot Light | Projects a concentrated warning point | Showing the approximate position of the crane hook/load |
| Crane Line Light | Creates a straight visual boundary | Marking one side of a crane travel or danger zone |
| Beacon / Strobe Light | Provides general equipment warning | Machine status rather than precise floor-zone marking |
For OEM and crane safety projects, XRLL can evaluate customization based on the installation and warning-zone requirements.
Available customization may include:
Red or green warning color
Projection coverage
Beam configuration
Mounting bracket
Cable length and connector
Product label and logo
Housing finish
Retail or industrial packaging
For a custom project, provide the crane mounting height, required warning-zone diameter, supply voltage and working environment.
No MOQ
Sample orders accepted
Samples: 1–2 days
Trial orders over 100 pcs: 7–10 days
The LED Crane Safety Lights are an innovative overhead crane light designed for enhanced visibility and safety in industrial settings. This crane spot light features three operational modes (S, M, L) with varying coverage areas, making it versatile for different crane operations. The robust construction with an aluminum housing and tempered glass lens ensures durability and reliability. The crane’s red light LED Crane Safety Lights provide clear visual guidance, reducing the risk of accidents and improving operational efficiency by crane spot light
LED overhead crane lights are essential safety devices for construction and industrial settings. These crane safety lamps project clear red and green zones onto the ground, helping to define safe and restricted areas around crane operations. Built with a durable base to withstand tough environments, the lights feature remote control switching, allowing operators to easily adjust lighting modes depending on the size and type of the load.
