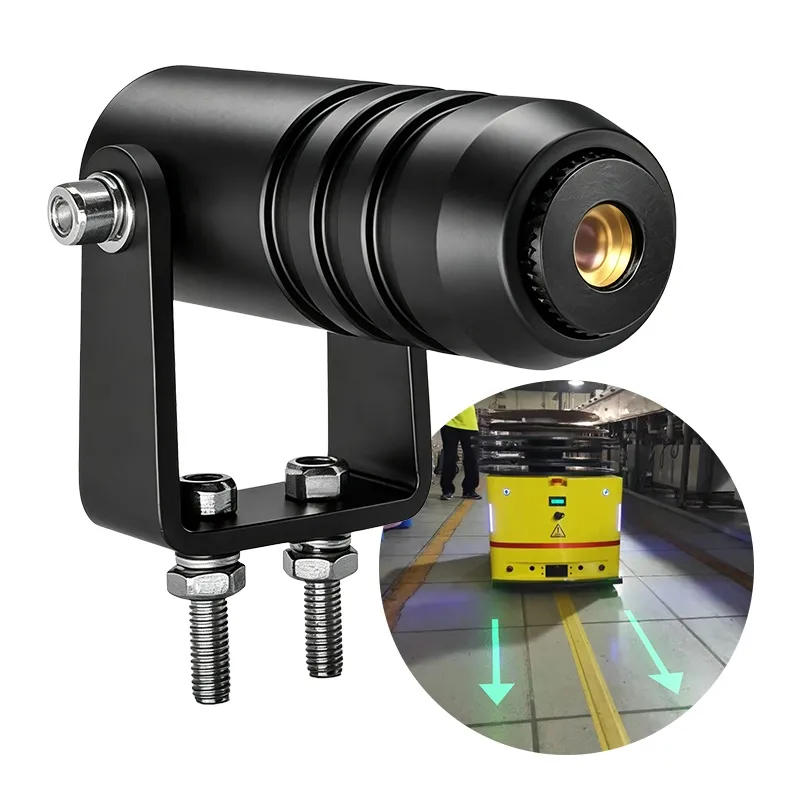

The XRL1352 is an IP65 waterproof laser arrow safety warning light available in red or green, designed for industrial vehicles with 12/24V DC operation and a working temperature range of -30~55°C.
Description
High-Visibility Laser Projection: Offers Green 30mW and Red 100mW power options; the red light provides superior penetration while green offers high distinctiveness, creating clear arrow patterns on the floor that intuitively indicate vehicle direction better than traditional strobes.

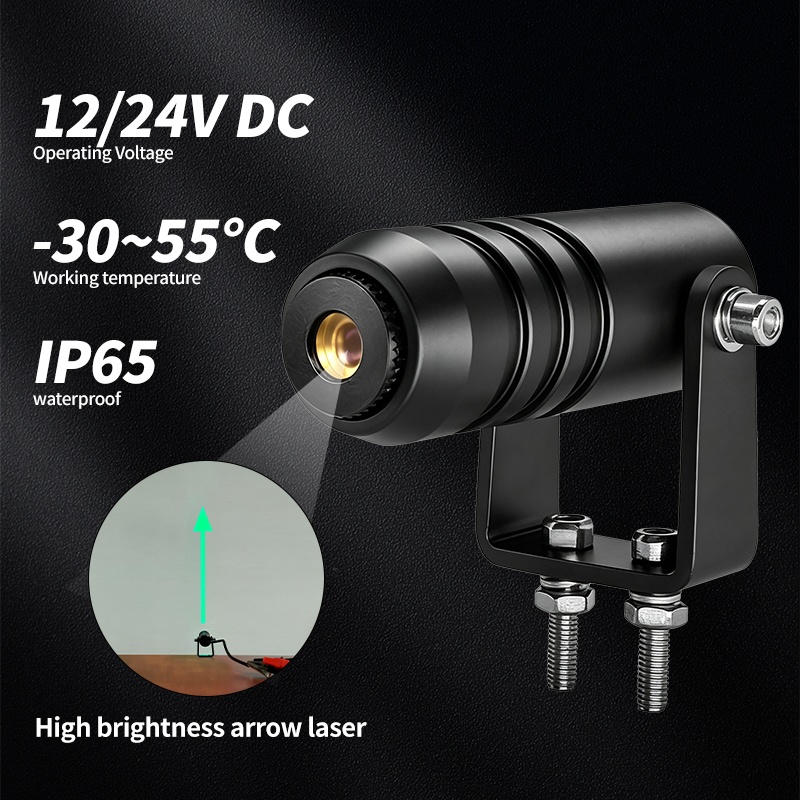

Industrial-Grade Protection & Compatibility: Features IP65 waterproof/dustproof rating and operates in temperatures from -30°C to 55°C, perfect for warehouses and semi-outdoor areas; supports 12V/24V DC wide voltage input for direct connection to mainstream industrial vehicle circuits without extra transformers.
Precise Safety Warning: Establishes a visual safety boundary by projecting dynamic arrows on the ground instead of simple flashing lights, forcibly defining the vehicle's path to alert pedestrians in advance and significantly reducing accident rates in mixed traffic zones.
The XRL1352 is an IP65-rated laser arrow safety warning light designed for industrial vehicles, featuring high-brightness laser projection (Red 100mW/Green 30mW) and 12/24V compatibility to visually define safe zones and traffic paths in warehouse logistics environments.
4. Adapt to bad weather
In bad weather conditions such as fog, rain or snow, the high brightness and penetrating power of long strip lights can penetrate dense fog and precipitation, providing a clearer vision.
5. Improve recognition
During multi-person off-road adventures or night activities, vehicles equipped with long strip lights are easier to identify and help team members position and follow each other.

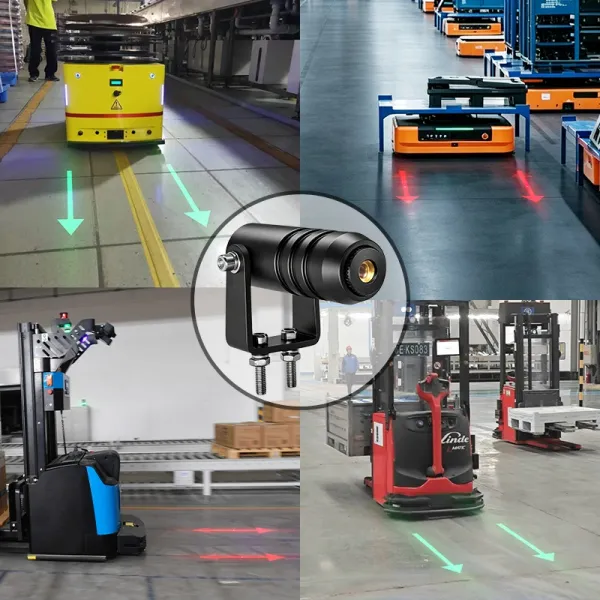

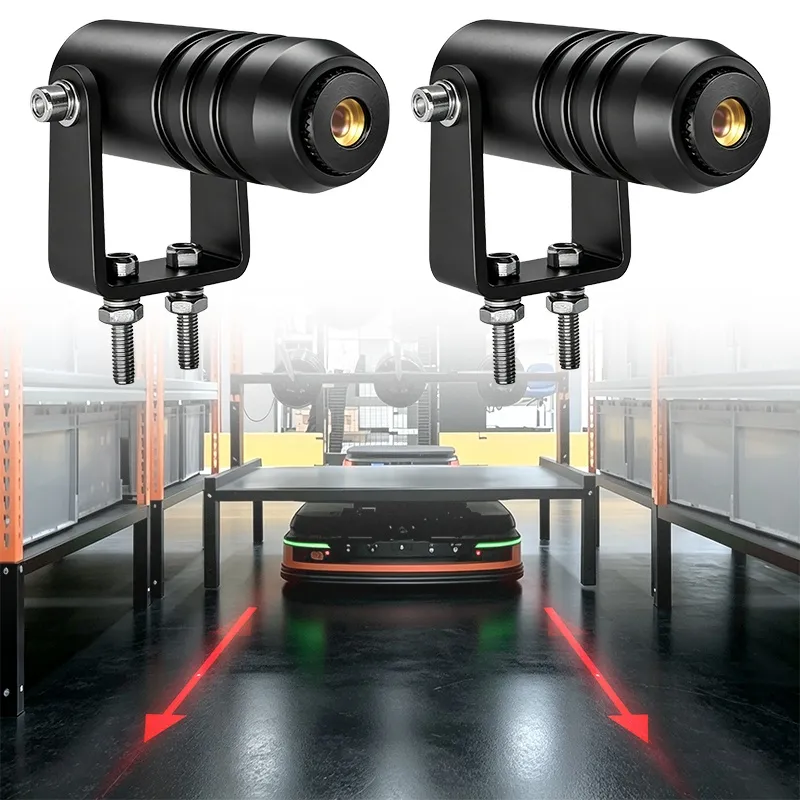

Three Key Application Scenarios AGV/AMR Path Indication: Projects green laser arrows to mark the intended travel path of autonomous vehicles in smart factories, alerting personnel to yield and preventing collisions. Forklift/Stacker Operation Warning: Mounted on sides or rear of forklifts to project red laser arrows defining "danger zones," clearly showing dynamic boundaries during reversing or turning maneuvers. Pedestrian-Vehicle Traffic Separation: Uses different colored laser arrows in sorting centers or main aisles to visually distinguish pedestrian walkways from vehicle lanes, enforcing traffic order without physical barriers.
Function display:
| Specification | Details |
| Model Number | XRL1352 |
| Light Source | High brightness laser, 1 piece |
| Optional Color | RED / GREEN |
| Power | Red: 100 mW / Green: 30 mW |
| Voltage | 12/24V DC |
| Housing Material | Aluminium |
| Bracket | Aluminium and Stainless Steel |
| Optional Beam Type | Arrow beam |
| Working Temperature | -30°C to +55°C |
| Waterproof Rating | IP65 |
High-Visibility Laser Arrow Projection: Utilizes a single high-brightness laser source to project sharp, distinct arrow beams on the floor, providing clear directional guidance that surpasses traditional scattered warning lights.

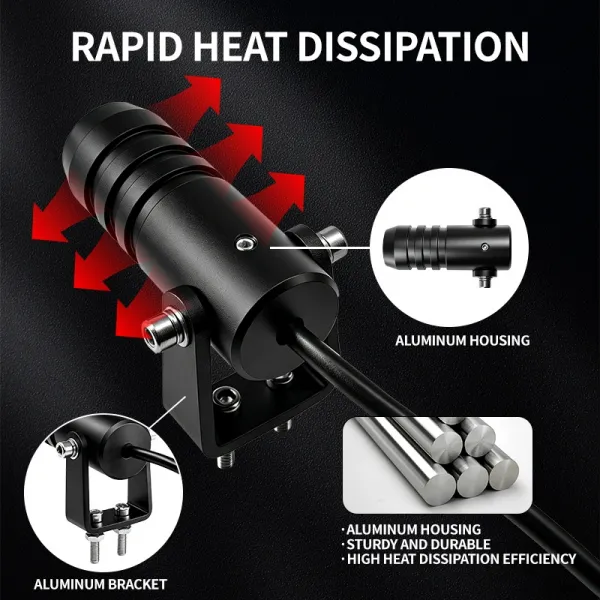

Industrial-Grade Durability: Constructed with an aluminum housing and aluminum/stainless steel bracket, offering IP65 waterproofing and a working temperature range of -30°C to 55°C to withstand harsh warehouse conditions.
Flexible Compatibility & Customization: Supports both 12V/24V DC systems for broad vehicle compatibility and offers selectable Red/Green colors with optional arrow beam patterns to meet specific visual management needs.
Foshan Xinruilai Lighting & Electrical Co., Ltd. is one of the most experienced manufacturers and suppliers of small laser line projector in China. Welcome to wholesale the quality and safe small laser line projector from our factory. Customized orders a
1. What are the available color and power options for the XRL1352 Laser Arrow Light?
The XRL1352 is available in two color options to suit different safety signaling needs: Red with a power output of 100mW, and Green with a power output of 30mW. Both options utilize a high-brightness laser source to project a clear arrow beam on the floor.
2. Is the laser warning light suitable for outdoor or wet environments?
Yes, the XRL1352 features an IP65 waterproof rating. Its housing is made of durable Aluminium, and the bracket combines Aluminium and Stainless Steel, making it resistant to dust and water jets, suitable for both indoor warehouses and semi-outdoor industrial areas.
3. What is the operating voltage and temperature range for this device?
The device supports a wide operating voltage of 12V/24V DC, making it compatible with most AGVs and forklifts. It is designed to withstand extreme temperatures, with a working range of -30°C to 55°C.
4. Can I order a sample to test the brightness and beam quality before a bulk order?
Absolutely. We encourage customers to test our products first. Please contact us at service03@xrlledlight.com to request a sample. We can provide specific details regarding sample costs and shipping arrangements.
5. What is the Minimum Order Quantity (MOQ) for the XRL1352?
We offer flexible MOQ policies to support businesses of all sizes. While we welcome trial orders, specific MOQ requirements may vary based on customization needs. Please email service03@xrlledlight.com for the most current MOQ information.
