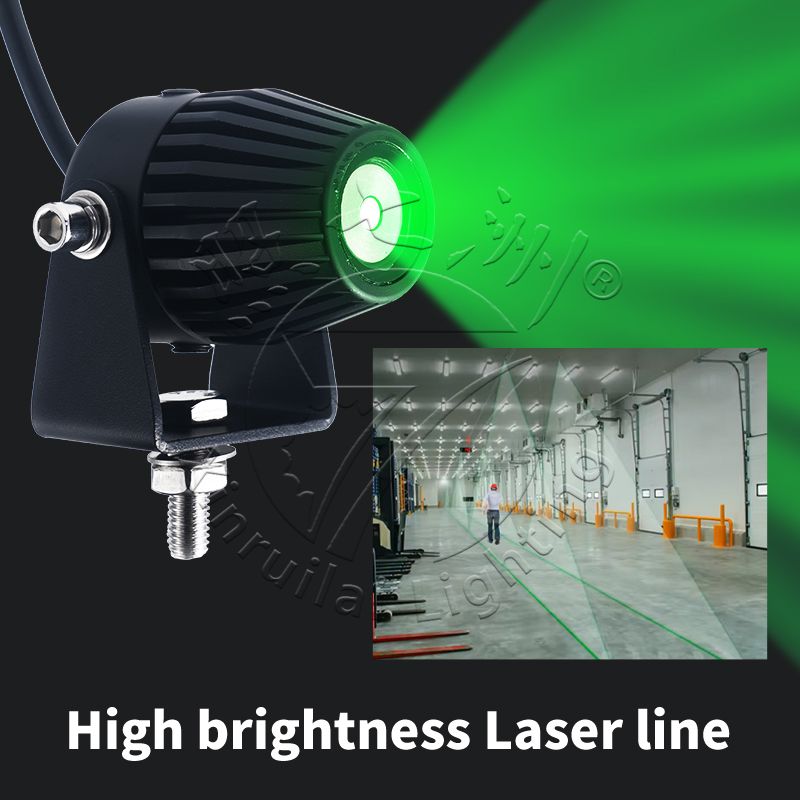

Laser Light Source : High brightness laser 1pcs
Voltage:DC10-80V
Power: 2-2.5W
Optional color: RED: 700mw/Green: 300mw/BLUE: 1600mw

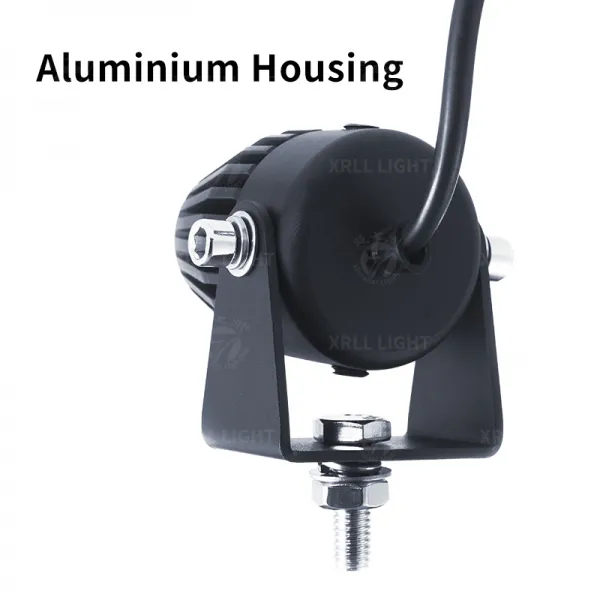

Housing: Aluminium
Bracket : Iron bracket
Working temperature:-20~55°C
Light beam : Line beam
Waterproof: Ip65
Safety Certification:Class 2
Description

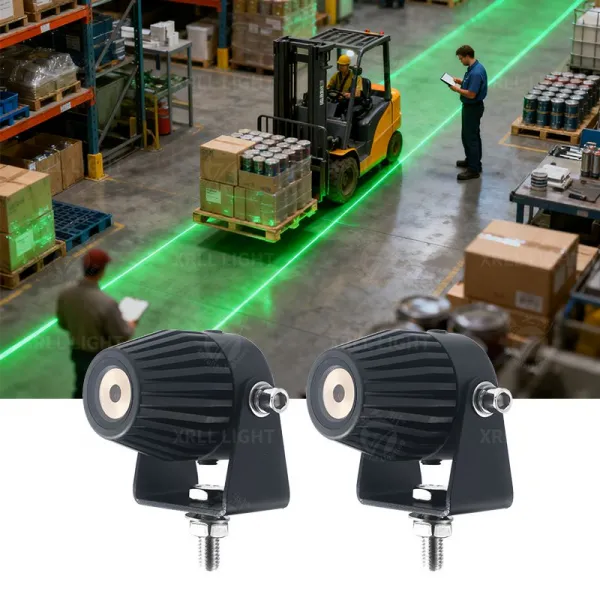

Safe driving route: The projector can project a clear driving route on the ground to guide forklift operators to follow a safe path and avoid collisions and accidents. For example, in narrow passages or corners, project arrows or guide lines.
Cargo stacking instructions: The projector can mark the designated cargo stacking area on the ground to ensure that goods are stacked in an orderly manner as planned and improve warehouse space utilization.

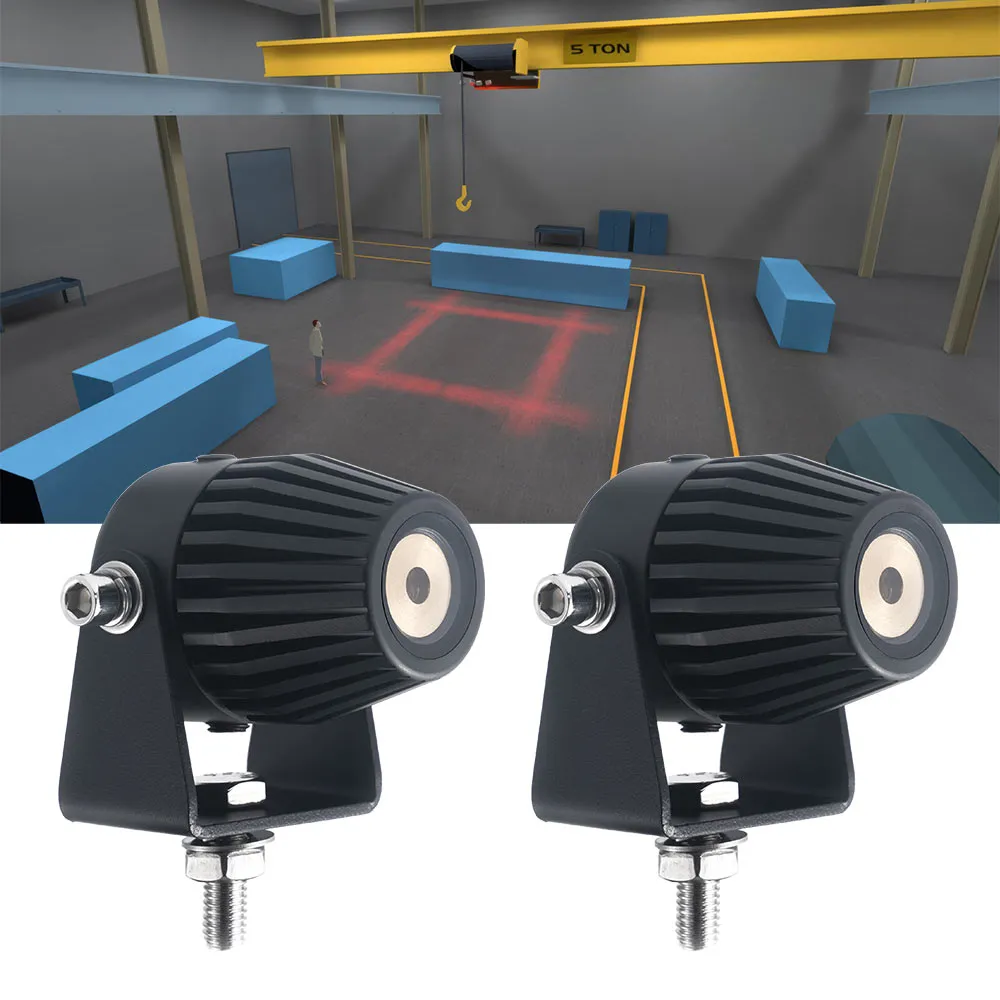

The forklift virtual linear floor marking LED system utilizes high-brightness LED light sources to project linear cursors or other markings onto the floor through optical lenses. These projectors are usually mounted on the bottom or top of a forklift and can project a continuous cursor line as the forklift moves
High-resolution and multi-color projection: Technological advancements will enable projection systems with higher resolution and more color options, providing richer visual instructions.
The recommended projection distance is 3–10 meters.
With a standard 90° line lens, the projected line length is approximately twice the projection distance:
At 3 m: about 6 m line length
At 5 m: about 10 m line length
At 8 m: about 16 m line length
At 10 m: about 20 m line length
The projected line becomes wider as the projection distance increases:
At 3 m: approximately 3–5 mm
At 5 m: approximately 5–8 mm
At 8 m: approximately 8–12 mm
At 10 m: approximately 10–15 mm

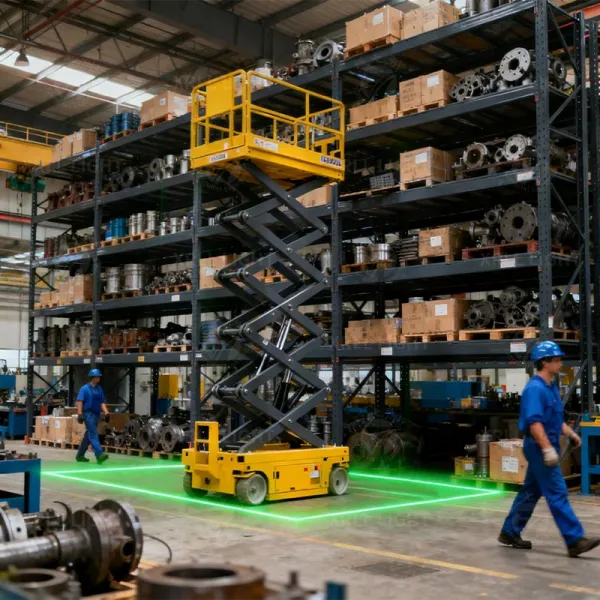

A narrow-angle lens produces a shorter and brighter line for positioning. A wide-angle lens produces a longer line for forklift lanes, loading areas and warehouse safety boundaries.
XRL1334X is available with red, green or blue laser output. It operates on DC 10–80V with a rated power of 2–2.5W.

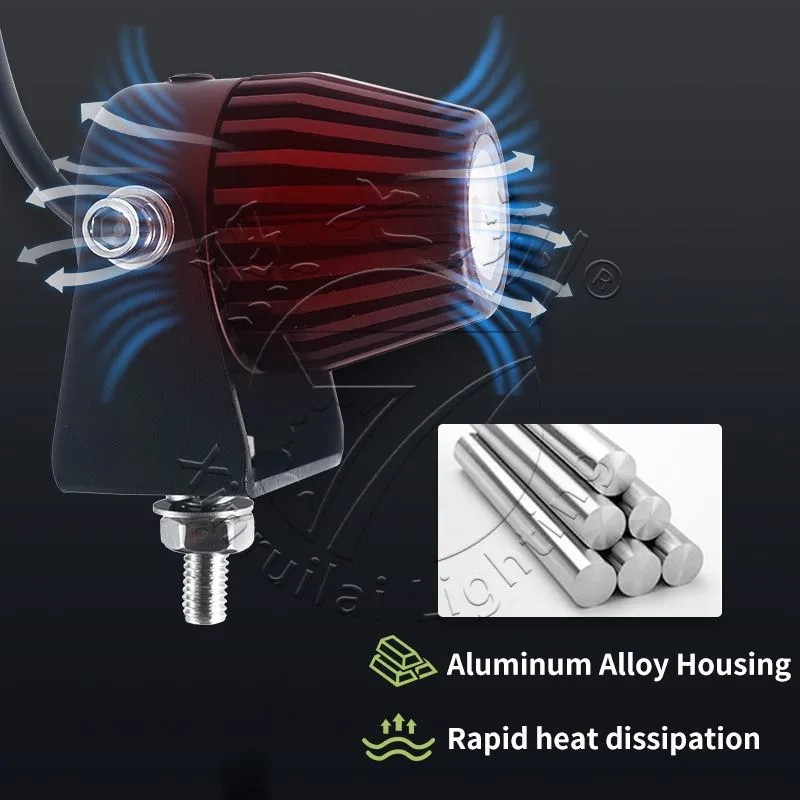

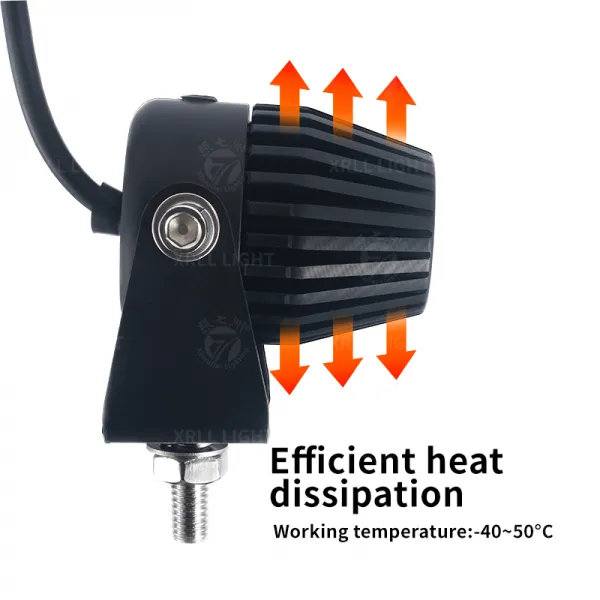

The aluminum housing supports heat dissipation and provides IP65 protection against dust and water spray.
The operating temperature range is –20°C to +55°C, and the expected service life is more than 50,000 operating hours under normal working conditions.

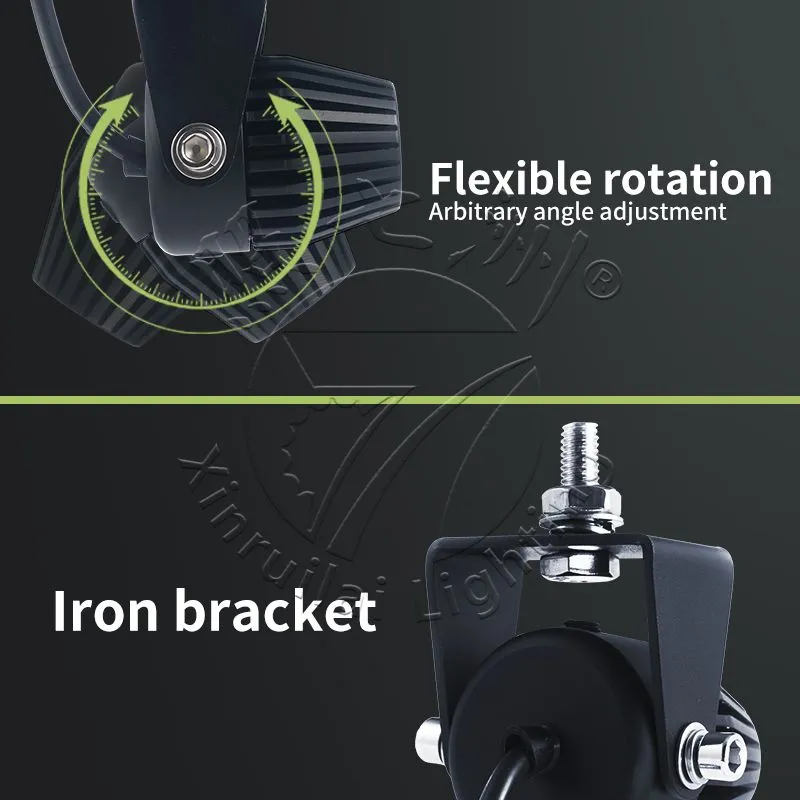

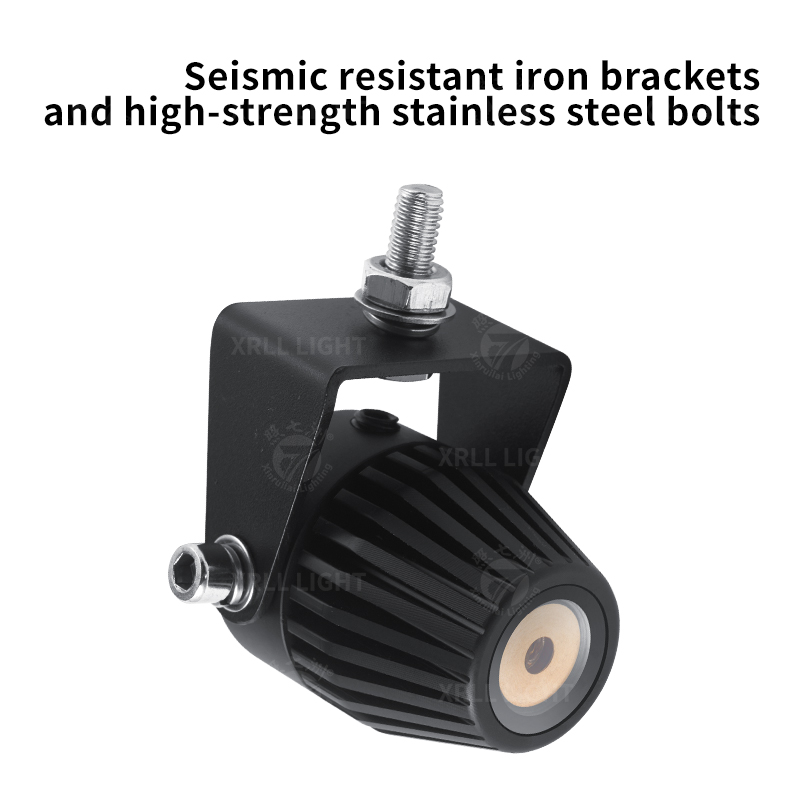

The adjustable metal bracket supports:
Wall mounting
Ceiling mounting
Steel-beam mounting
Machine-frame mounting

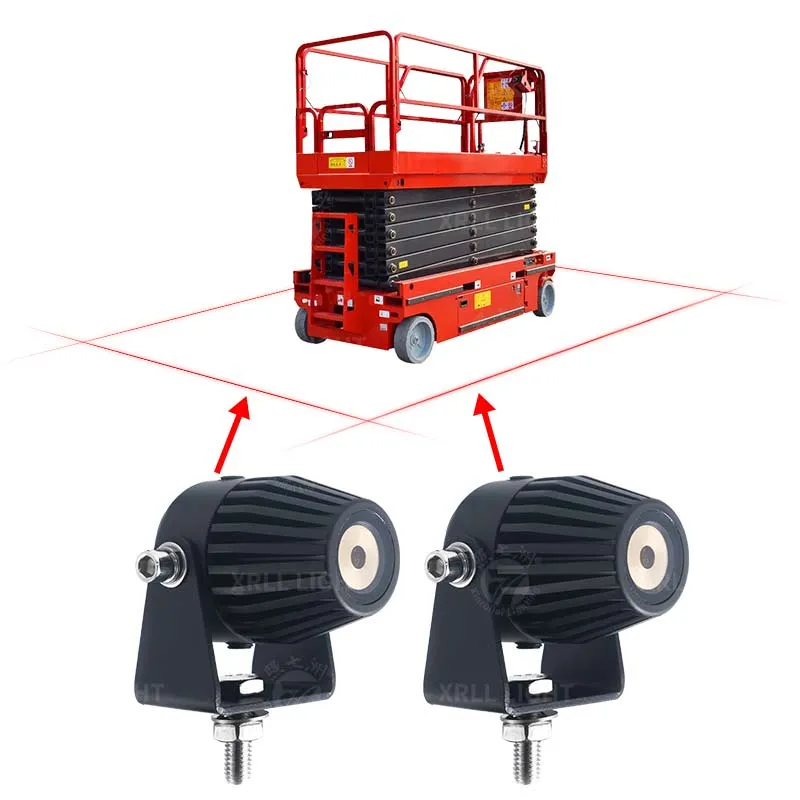

Forklift or industrial vehicle mounting
Cable length is selected according to the installation position. Bare-wire connections, waterproof connectors and custom wiring harnesses are available.
XRLL provides a 12-month warranty for manufacturing and material defects under normal installation and operating conditions. Lifetime technical support is also provided.
The actual projection result depends on the mounting height, lens angle, laser color, ambient light and floor surface. Final line length and line width are confirmed according to the installation conditions.
Environmental adaptability: The new generation of projectors will have stronger environmental adaptability and can work stably in extreme temperature, humidity and dust conditions.
By projecting a continuous linear cursor on the ground, forklift operators are able to find the best travel path more quickly, reducing the time it takes to find a route and adjust direction.
This flexibility enables warehouses and production workshops to quickly respond to business changes, improving adaptability and flexibility.
Clear floor markings can help new employees become familiar with the work environment and operating procedures faster, reducing training time and costs. At the same time, this visual guidance system also helps managers better supervise and manage forklift operations to ensure safe and standardized operations.
The forklift virtual linear floor marking LED system provides a safe, efficient and flexible solution for forklift operations through innovative visual guidance technology. This technology not only improves operator efficiency, but also significantly improves safety in industrial environments, representing the development direction of modern warehousing and logistics management.
Foshan Xinruilai Lighting & Electrical Co., Ltd. is one of the most experienced manufacturers and suppliers of 2w laser line projector 1334X in China. Welcome to wholesale the quality and safe2w laser line projector 1334X from our factory. Customized orde
