Crane Warning Light Installation: Mounting and Alignment Guide

The performance of a crane warning light depends not only on the lamp itself but also on how it is mounted, connected, and aligned. A poorly positioned light may project outside the intended area, become obstructed during crane movement, or be difficult to recognize under normal working conditions.

For overhead cranes and other lifting equipment, installation planning should account for the mounting structure, operating envelope, electrical supply, environmental conditions, and intended warning function.

The following guide outlines the key steps for installing and commissioning a crane warning light in an industrial environment.

1. Confirm the Required Projection and Installation Conditions

Before choosing a mounting location, determine what the EOT light needs to communicate.

Depending on the model, a crane warning light may provide a line or spot projection, or another specified beam pattern. The pattern should correspond to the intended application, whether that involves marking a designated boundary or drawing attention to a particular area.

Next, review the installation conditions. Identify the available mounting height, the target surface, the crane's travel path, and any structures or moving components that could obstruct the beam.

It is also important to establish whether the Gobo projector for crane is intended to provide general visual awareness or communicate a defined hazard boundary. Required safety distances should be established through the relevant risk assessment rather than inferred from the projected pattern.

2. Select a Secure and Suitable Mounting Position

The mounting position affects projection coverage, visibility, and mechanical reliability.

Look for a location that provides a clear optical path to the target surface while maintaining sufficient clearance from moving crane components. The position should also allow inspection and adjustment without creating unnecessary maintenance difficulties.

Before installation, consider:

• The distance between the lamp and the target surface.

• The required beam direction and projection dimensions.

• Potential obstruction from crane structures and suspended loads.

• Exposure to vibration, dust, moisture, and temperature changes.

• The accessibility of the mounting bracket and electrical connections.

The bracket and supporting structure must be appropriate for the equipment and operating conditions. Follow the manufacturer's instructions for fasteners, mounting orientation, and any specified tightening requirements.

Do not modify the mounting assembly or exceed the bracket's intended adjustment range without appropriate technical approval.

3. Check Electrical Compatibility Before Connection

Electrical requirements differ between warning light models and configurations. Before connecting a new lamp, verify its input voltage range, current requirements, wiring arrangement, connector type, and any specified electrical protection.

Do not assume that a replacement unit has the same electrical characteristics as the light previously installed.

Qualified personnel should complete the electrical work in accordance with the manufacturer's instructions and applicable site procedures. Isolate the relevant power supply and follow the facility's approved lockout and safe-work practices before installation or maintenance.

Inspect the cable route carefully. Wiring should be protected against abrasion, trapping, excessive tension, and interference with crane movement.

Once the connections are complete, verify that the wiring and enclosure meet the installation requirements before restoring power.

4. Align the Projected Beam

After the light has been mounted and connected, adjust the projection to match the intended target area.

The alignment process should be carried out using the actual mounting height and target surface. The result may differ from a test performed in another environment because of variations in distance, lighting, floor conditions, and surrounding obstructions.

A practical alignment procedure involves the following steps:

1. Ensure the crane and work area are in a safe condition for testing.

2. Activate the lamp according to the manufacturer's instructions.

3. Observe the projected pattern on the target surface.

4. Adjust the bracket gradually to position the beam correctly.

5. Check the pattern's dimensions, shape, and visibility.

6. Secure the adjustment and verify that the position remains stable.

If the projection is too large, too small, or difficult to distinguish, check the mounting distance and optical specifications. Aiming adjustments alone may not resolve a problem caused by an unsuitable beam configuration.

5. Check Alignment Throughout Crane Movement

For a moving crane, correct alignment at one stationary position does not necessarily mean the light will provide the intended visual cue throughout operation.

Inspect the beam at representative positions along the crane's operating range. Observe whether the projected pattern shifts away from the intended area or becomes obstructed by structural components and suspended loads.

Also check visibility from the pedestrian approach directions that matter for the application. If several cranes operate in the same facility, assess whether overlapping patterns could create confusion.

Where the installation cannot maintain the intended warning function throughout the required operating range, reassess the mounting arrangement and the overall warning strategy before placing the system into service.

6. Verify Visibility Under Normal Working Conditions

A warning light should be evaluated under representative facility lighting rather than only in a dark test area.

Bright overhead lighting, daylight, reflective flooring, dust, and surface contamination may affect the projected pattern. Observe the light during normal operations and confirm that workers can recognize the intended visual cue.

The commissioning process should also confirm that employees understand what the pattern means and what actions they are expected to take.

A warning light can support visual awareness, but it cannot physically stop access to a hazardous area. Where necessary, combine it with suitable guarding, exclusion procedures, training, and other controls identified by the site's risk assessment.

7. Establish a Routine Inspection and Maintenance Plan

The mounting position and beam alignment should be checked periodically to ensure that the installation continues to meet its intended purpose.

The inspection schedule should reflect the manufacturer's recommendations, operating environment, and site risk assessment.

Routine checks should include:

• Mounting hardware: Look for loose fasteners, bracket movement, or physical damage.

• Electrical connections: Inspect cables, connectors, and enclosures for damage.

• Optical components: Check the lens for dirt, contamination, or damage.

• Beam alignment: Confirm that the projected pattern remains in the intended position.

• Operating visibility: Verify that the pattern is recognizable under normal working conditions.

Carry out maintenance using the site's approved procedures. Repeat the alignment and visibility checks after replacing the light, adjusting its bracket, performing related crane maintenance, or changing the surrounding layout.

Choosing a Light for an Overhead Crane Installation

A suitable crane warning light must match the mounting arrangement, electrical supply, intended projection, and environmental conditions. These factors should be checked together rather than treating the lamp's power rating as the sole selection criterion.

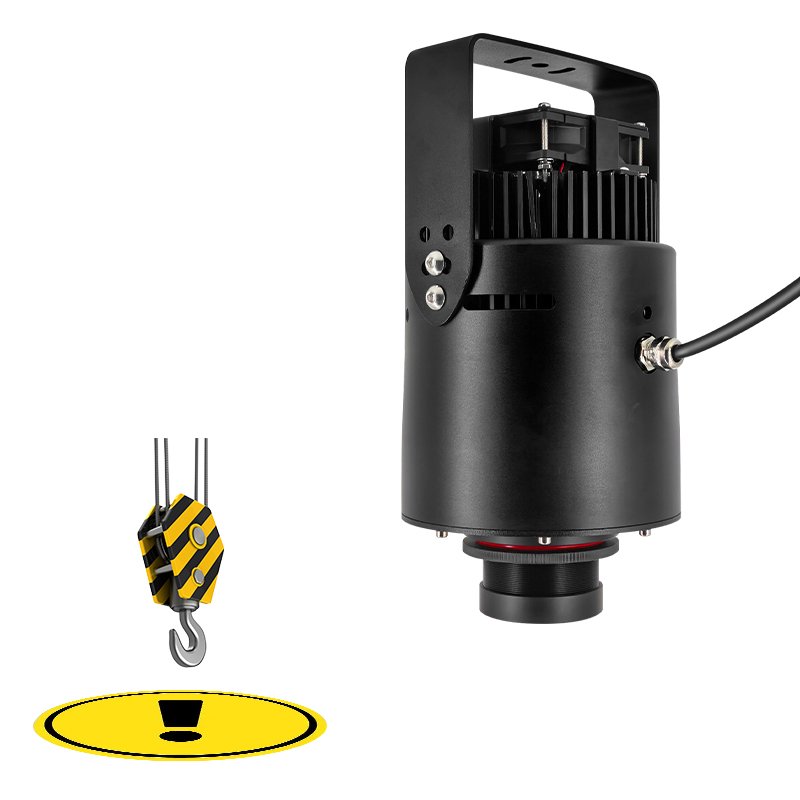

For a new installation or replacement project, the Crane Warning Light 1081o can be assessed against the available mounting space, required beam pattern, and site operating conditions. Confirm the specifications for the exact configuration before finalizing the installation.

Careful positioning, secure mounting, and routine inspection help maintain a consistent visual warning as crane operations and workplace conditions change.
